Product Overview
Operate your Air Springs (or other pneumatic accessories) right from the driver's seat - an existing Air Compressor is required
Pacbrake's Basic Electrical In-Cab Control Kits with Digital Gauge display offers an ON / OFF activation switch to control compressor operation, and a switch for the inflation / deflation of your air springs (or pneumatic accessory) simultaneously. Simultaneous Activation (or Inflation) is simply one switch that inflates/deflates both Air Springs together at the same time. A comparable Basic Independent Activation Kit (HP10261) is also available for those that want to utilize two separate switches, allowing for inflation/deflation of each Air Spring individually. Digital Gauges display pressure from 0psi to 220psi at 1psi increments allowing for continuous monitoring and adjusting of your Air Spring pressure. Pacbrake's unique two way solenoid block gives you the option to stack and combine additional blocks to run your vehicle's air accessories from one central block.
Simultaneous Activation/Inflation; inflates/deflates both air springs at the same time
This kit does not include an Air Tank (sold separately): HP10053 — 1/2 Gallon Air Tank — (Black Steel), HP10266 — 1/2 Gallon Air Tank — (Polished Aluminum), HP10050 — 2 ½ Gallon Air Tank — (Black Steel), HP10267 — 2 ½ Gallon Air Tank — (Polished Aluminum). PLEASE NOTE: If adding an air tank, a pressure switch is required; HP10110 for 105-135 PSI / HP10111 for 85-105 PSI

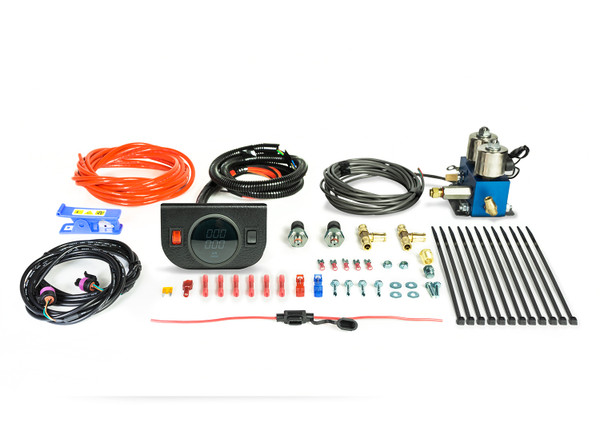

This Kit Includes: Electrical Dash Switches w/ Digital Gauge — Simultaneous Activation, 12VDC Electric Actuated two-way Pneumatic Solenoid, Includes Installation Hardware & Hardware to connect to an existing Onboard Air system only, Does not include any pre-built harnesses or compressor (See Premium Kit: HP10274, which includes a 12VDC HP325 Series Air Compressor & 1/2 Gallon Air Tank). PLEASE NOTE: This kit requires the use of an Air Compressor (or existing onboard air system) to work with an Air Suspension kit.
Use this kit in conjunction with one of our air tank kits and air compressor kits to build your own customizable onboard air system
WARNING: HP325 Series Air Compressors (sold separately) cannot be used with an Air Tank larger than 2 ½ Gallons
Basic kits provide customers with a less expensive option for operating their Air Suspension Kits with dash switch(es) that attach directly to the Air Springs and an existing compressor or onboard air system.
Take your towing, hauling, 4x4'ing and all other onboard air management to the next level with Pacbrake's Electrical In-Cab Controls!
Use this kit in conjunction with one of our Air Compressor Kits and/or Air Tank Kits to make your own complete and customized onboard air system!
