Product Overview
Pacbrake offers various vacuum and air solenoid configurations to meet any specialty requirement or mounting location. Our engineered commercial duty and severe-duty solenoids have been through some of the toughest testing grounds the world has to offer. Pacbrake's experience designing cost effective hydraulic and pneumatic solenoids with demanding requirements has equipped Pacbrake with the experience to integrate solenoid controls into any application.

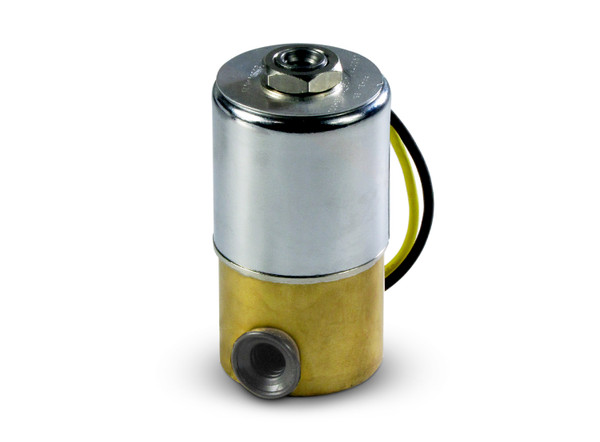

Product Description: Brass Solenoid Base, Zinc Chromate Plated Carbon Steel Solenoid Body, 1/4" - 18 NPT Inlet "IN" Port — Normally Closed (opens when energized), 1/4" - 18 NPT Outlet "CYL" Port — Normally Open to Exhaust (Atmosphere), 6" (152 mm) long 18 AWG ( UL 3173) pigtail, 1N4006 Internal Suppression Diode, NEMA 1 Protection
Coil Resistance: 36 O to 45 O @ 24°C
INLET: 1/4" - 18 NPT "IN" - Normally Closed - opens when energized
OUTLET: 1/4" - 18 NPT "CYL" - Normally Open to Exhaust (Atmosphere)
Voltage Range: 24 VDC
