Product Overview
(Basic kit version are also available: Horizontal Head HP10631 / Vertical Head HP10632)
11.5 inch x 6 inch x 9.5 inch (LxWxH) / (293mm x 153mm x 242mm)
18.5 lbs (8.39kg)
HP625 Series Compressor Specifications:
Includes all compressor installation hardware and premium pre-built harnesses

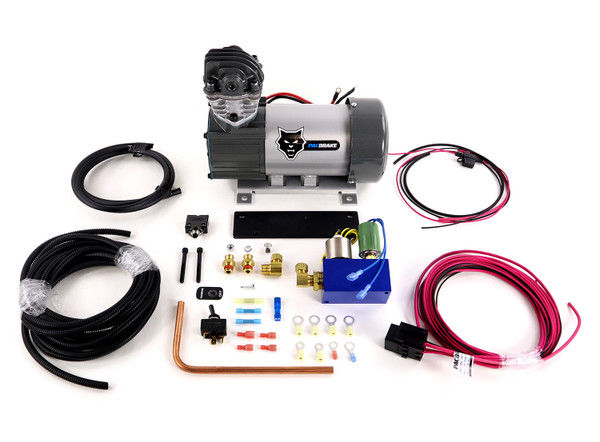

Kit Details:
Pacbrake's HP625 Series (Premium) Air Compressor kits have a 100% duty cycle (60 minutes @ 100 psi) and are offered in 24 VDC Vertical Head configuration (HP10630) or 12 VDC Vertical Head configuration (HP10629) or 12 VDC Horizontal Head configuration (HP10628).
Pacbrake's HP625 Series 12VDC Air Compressor - Gunmetal Grey finish
These 3/4 horsepower compressors have an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor and a cast steel cylinder with a hard anodized aluminum sleeve.
This kit also includes an unloader block assembly for use with air tanks
Vertical Head configuration
Get quick and effortless inflation power at your fingertips with Pacbrake's robust heavy duty Premium HP625 Series compressor kits!
