Product Overview

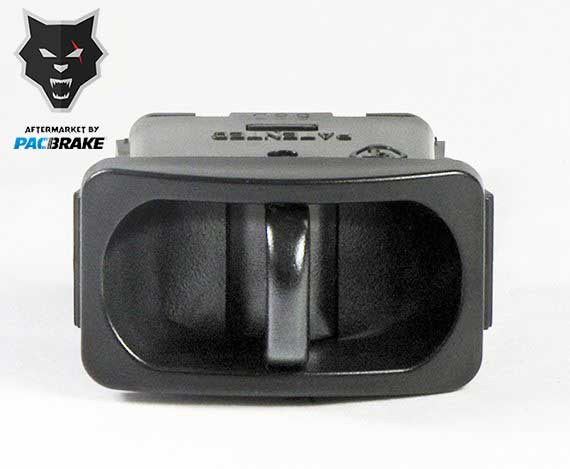

Product Description: 3-way dead center paddle style actuator
24" (609 mm) wire leads
27.5° throw
Black thermoplastic construction - meets FMVSS 302 flammability requirements
Fits .89" X 1.61" (22.6 mm X 40.9 mm) openings, R.063" (R1.6 mm) max corner radii, .084" to .125" (2.13 mm to 3.18 mm) panel thickness
Maximum 25% duty cycle - maximum "on" time 60 seconds
Maximum voltage of 15 VDC at zero current
Rated for steady state direct current (DC) of 7.5 A maximum
Supply and delivery ports: barbed fitting - accepts 3/16" ID tube - vented to atmosphere through rear of switch
Voltage drop across lead wire terminal will not exceed 0.52 VDC at 7 A direct current
