Product Overview
(Part Number HP10143)-12 VDC.
1/4 HP.
100 percent (1 Hour at 100 PSI) duty cycle.
2 1/2 Gallon aluminum air tank .
2 1/2 gallon capacity. 5-3/8' NPT ports.
Air Tank Specifications:
air tank
Compressor Specifications:
Each Onboard Air System comes complete with:
Electrical connectors and all applicable accessories.
electrical connectors and required accessories.
Fittings.
fittings
HP325 Series 12V DC compressor (Part Number HP10143).
Max working pressure 150 PSI.

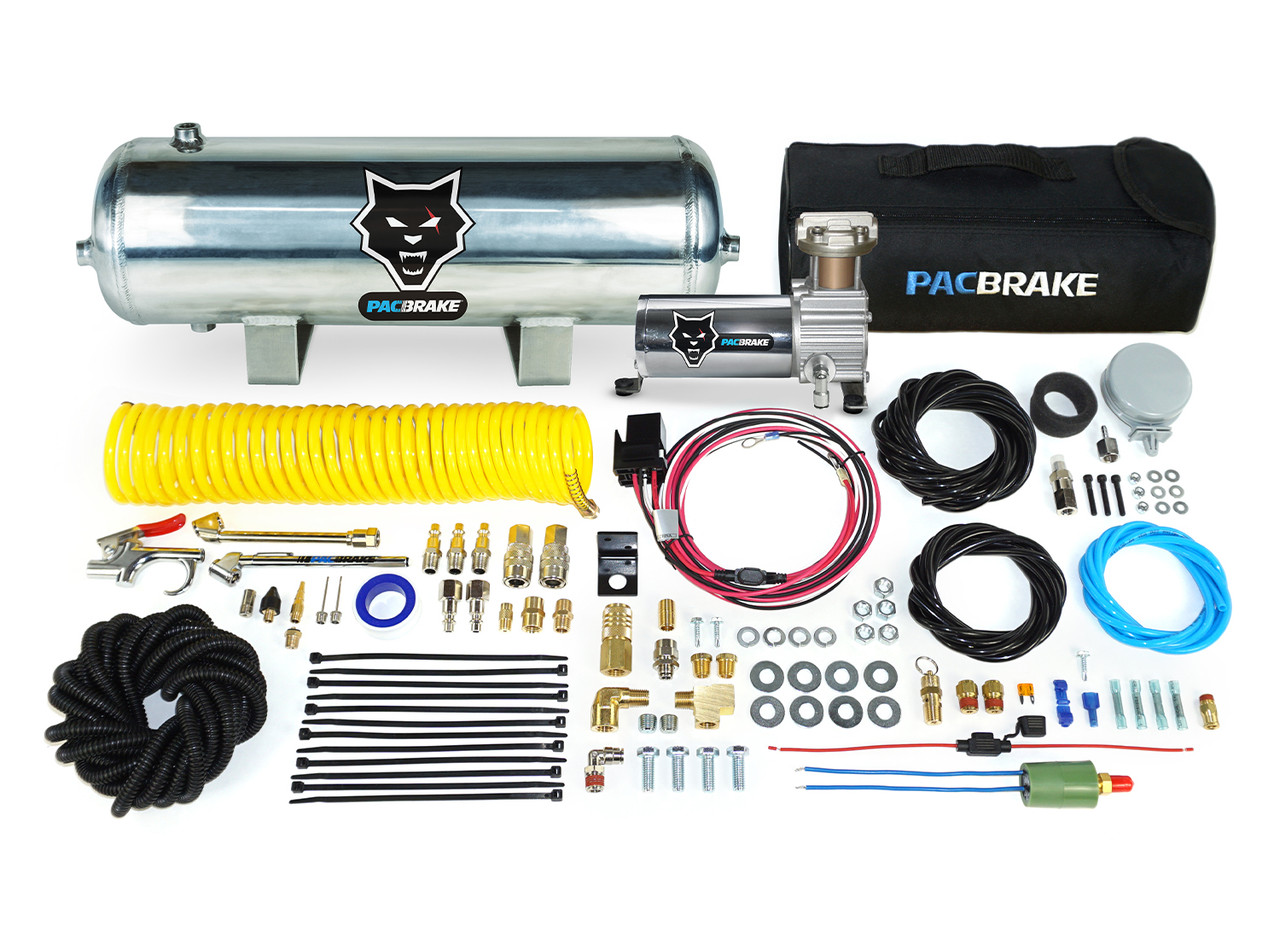

Onboard Air Kit with 2 1/2 Gallon Aluminum Air tank consists of air compressor
Pressure switch.
pressure switch
relay (s)
Relay(s).
Rust inhibitor applied to inside of tank.
Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH).
Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm.
Weight is 5.5 lbs.
Weight is 9.8 lbs.
Welded on mounting brackets.
A copper wire wound permanent magnet motor
Cast aluminum cylinder head
Compressor features:
Hard anodized aluminum cylinder and aluminum sleeve
Oil-less design
PTFE piston ring
Sealed bearings
