Product Overview
Application Specific Harness
Auto resets after shutdown
Automatic shutdown is achieved by actuating the engine's existing electronic throttle unit if engine speed exceeds the pre-set speed or by manual override. The valve electronically returns to open position after emergency engine shutdown, all while providing feedback to the operator that the valve is held closed via an illuminated switch.
Capable of shutting down at a secondary trip speed for special applications such as protection of PTO equipment or as an anti-theft device
In-cab switch for manual shutdown included
KIT CONTENTS:
Pacbrake's PH+ (PowerHalt Plus) Electronic Air Shutoff System is an electronically controlled emergency engine shut down system which forces engine shut down by blocking an engine's air intake path.
PH+ KEY BENEFITS :

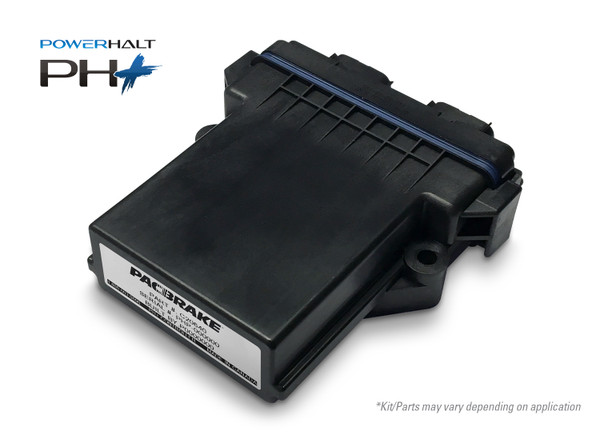

PH+ PowerGuard Controller
Power/Switch Harness
Reliable and safe emergency shut down for diesel engines with electronic throttle body: automatically via overspeed signal or manually via toggle switch (valve remains closed for minimum 15 seconds after tripping and will hold closed until removal of shut-down signal)
Secondary trip speed for PTO and anti-theft applications – providing ground to the Secondary Trip Speed input allows users to engage a second emergency shut-down speed for use while powering auxiliary equipment or to prevent theft. (To prevent accidental shut down while enabling and disabling Secondary Trip Speed, a 5 second grace period is applied when switching to a lower trip speed to allow for engine speed to reduce. When switching to a higher trip speed, the change is applied immediately.)
Self-Tapping Screws
Tie Straps
Toggle Switch Assembly
Valve will electronically reset and switch light will extinguish upon removal of engine shut-down signal
When valve is closed, supplied switch light illuminates to indicate system activation
Easily removed
Installed in 60 minutes or less
IP67 rated seal
Multiple built-in shut-off speeds
Operator friendly
Plug play installation, factory connectors, pre-built wiring harness
Two Year Warranty
Will not set ECM trouble codes
Fitment
Ram: 2500 19 - 24, Ram: 3500 19 - 24, Ram: 3500 19 - 24 6.7 L Engine, Ram: 4500 19 - 24 6.7 L Engine, Ram: 5500 19 - 24 6.7 L Engine
